€382

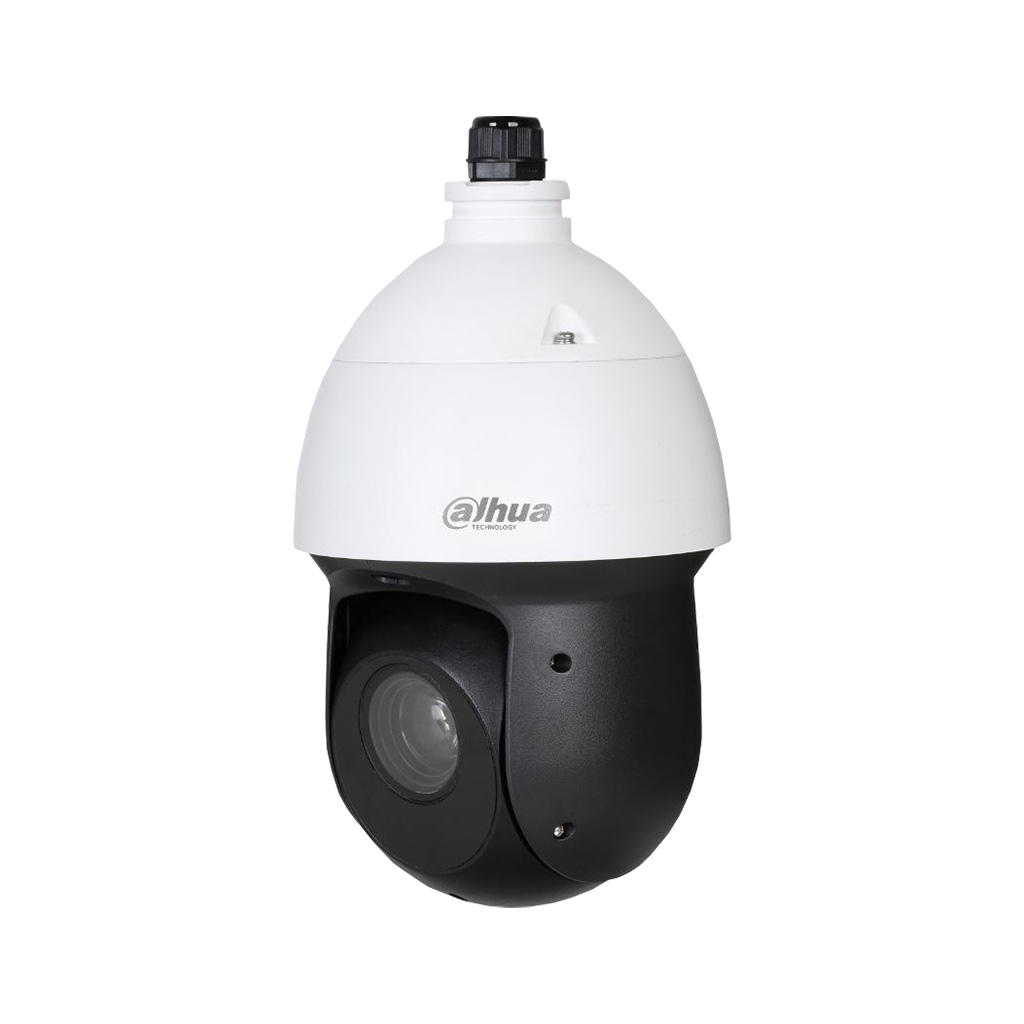

DH-SD49225XA-HNR-S3
DahuaPTZ-Cameras· 1/2.8″ 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight technology
· Max. 25/30 fps@1080p
· IR distance up to 100 m
· Perimeter protection
· Face detection
· SMD Plus
· IP66
Description
| Technical Specification | ||||||||||
| Camera | ||||||||||
| Image Sensor | 1/2.8″ CMOS | |||||||||
| Pixel | 2 MP | |||||||||
| Max. Resolution | 1920 (H) × 1080 (V) | |||||||||
| ROM | 256 MB | |||||||||
| RAM | 512 MB | |||||||||
| Electronic Shutter Speed | 1/1 s–1/30,000 s | |||||||||
| Scanning System | Progressive | |||||||||
| Min. Illumination | Color: 0.005 [email protected]/W: 0.0005 [email protected] [email protected] (IR light on) | |||||||||
| Illumination Distance | 100 m (328.08 ft) (IR) | |||||||||
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off | |||||||||
| Illuminator Number | 4 (IR) | |||||||||
| Lens | ||||||||||
| Focal Length | 4.8 mm–120 mm | |||||||||
| Max. Aperture | F1.6–F3.8 | |||||||||
| Field of View | H: 56.2°–2.6°; V: 32.5°–1.5°; D: 63.2°–3° | |||||||||
| Optical Zoom | 25x | |||||||||
| Focus Control | Auto; Semi-auto; Manual | |||||||||
| Close Focus Distance | 1.5 m (4.92 ft) | |||||||||
| Iris Control | Auto | |||||||||
| DORI Distance | Detect | Observe | Recognize | Identify | ||||||
| 2400 m (7874.02 ft) | 948 m (3110.24 ft) | 480 m (1574.80 ft) | 240 m (787.40 ft) | |||||||
| PTZ | ||||||||||
| Pan/Tilt Range | Pan: 0° to 360° endlessTilt: –15° to +90°, auto flip 180° | |||||||||
| Manual Control Speed | Pan: 0.1°/s–200°/sTilt: 0.1°/s–100°/s | |||||||||
| Preset Speed | Pan: 200°/s; Tilt: 100°/s | |||||||||
| Presets | 300 | |||||||||
| Tour | 8 (up to 32 presets per tour) | |||||||||
| Pattern | 5 | |||||||||
| Scan | 5 | |||||||||
| Power-off Memory | Yes | |||||||||
| Idle Motion | Preset; Tour; Pattern; Scan | |||||||||
| PTZ Protocol | DH-SDPelco-P/D (Auto recognition) | |||||||||
| Intelligence | ||||||||||
| IVS (Perimeter Protection) | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | |||||||||
| Face Detection | Yes | |||||||||
| SMD | Yes | |||||||||
| Video | ||||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) | |||||||||
| Streaming Capability | 3 streams | |||||||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) | |||||||||
| Video Frame Rate | Main stream: 1080p/1.3M/720p (25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 720p (1–25/30 fps) | |||||||||
| Bit Rate Control | CBR; VBR | |||||||||
| Video Bit Rate | H.264: 32 Kbps–8192 KbpsH.265: 32 Kbps–8192 Kbps | |||||||||
| Day/Night | Auto (ICR); Color; B/W | |||||||||
| BLC | Yes | |||||||||
| WDR | 120 dB | |||||||||
| HLC | Yes | |||||||||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | |||||||||
| Gain Control | Auto; Manual | |||||||||
| Noise Reduction | 2D NR; 3D NR | |||||||||
| Motion Detection | Yes | |||||||||
| Region of Interest (RoI) | Yes | |||||||||
| Defog | Electronic | |||||||||
| Image Rotation | 180° | |||||||||
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view | |||||||||
| S/N Ratio | ≥ 55 dB | |||||||||
| Network | ||||||||||
| Network Port | 1 RJ-45 Port 10/100Base-T | |||||||||
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP | |||||||||
| Interoperability | ONVIF Profile S&G&T; CGI | |||||||||
| Streaming Method | Unicast; Multicast | |||||||||
| User/Host | 20 (total bandwidth: 64 M) | |||||||||
| Storage | FTP; Micro SD card (512 GB); NAS | |||||||||
| Browser | IE7 and later versionsChromeFirefoxSafari | |||||||||
| Management Software | Smart PSS; DSS; IVSS; Configtool; NVR; Smart Player | |||||||||
| Mobile Client | iOS; Android | |||||||||
| Certification | ||||||||||
| Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014 | |||||||||
| Port | ||||||||||
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; sending email | |||||||||
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection | |||||||||
| Alarm I/O | 2/1 | |||||||||
| Power | ||||||||||
| Power Supply | 12 VDC, 3 A (± 10%)
PoE+ (802.3at) |
|||||||||
| Power Consumption | Basic: 12 WMax.: 21 W (illuminator + PTZ working) | |||||||||
| Environment | ||||||||||
| Operating Conditions | –40 °C to +65 °C (–40 °F to +149 °F) | |||||||||
| Operating Humidity | ≤ 95%RH | |||||||||
| Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection | |||||||||
| Structure | ||||||||||
| Casing | Aluminum alloy ADC12 | |||||||||
| Product Dimensions | 295 mm × Φ160 mm (11.61″ × Φ6.30″) | |||||||||
| Net Weight: | 2.8 kg (6.17 lb) | |||||||||
| Gross Weight | 4.3 kg (9.48 lb) | |||||||||
